Open And Slide Hinges

Product Description

DEQING LINNUO TWO WAYS SLIDE-ON HINGE carries the designer's careful design concept. The base slide-in design can be slid out after loosening the base screws, making the installation more convenient. Selected cold-rolled steel is combined with nickel-plated surface to increase corrosion resistance. The thickness of the hinge is thickened, the materials are high-quality, and the durability is upgraded. The scientific base is positioned, and the fixed hinge is not easy to shift.

DEQING LINNUO TWO WAYS SLIDE-ON HINGE has passed multiple load-bearing tests, and can pass 80,000 trial tests and a 48-hour high-intensity salt spray test, bringing you the most reliable promise. All products have passed ISO9001 quality management system certification, Swiss SGS quality testing and CE certification, international standards, quality and safety are guaranteed.

Product Details

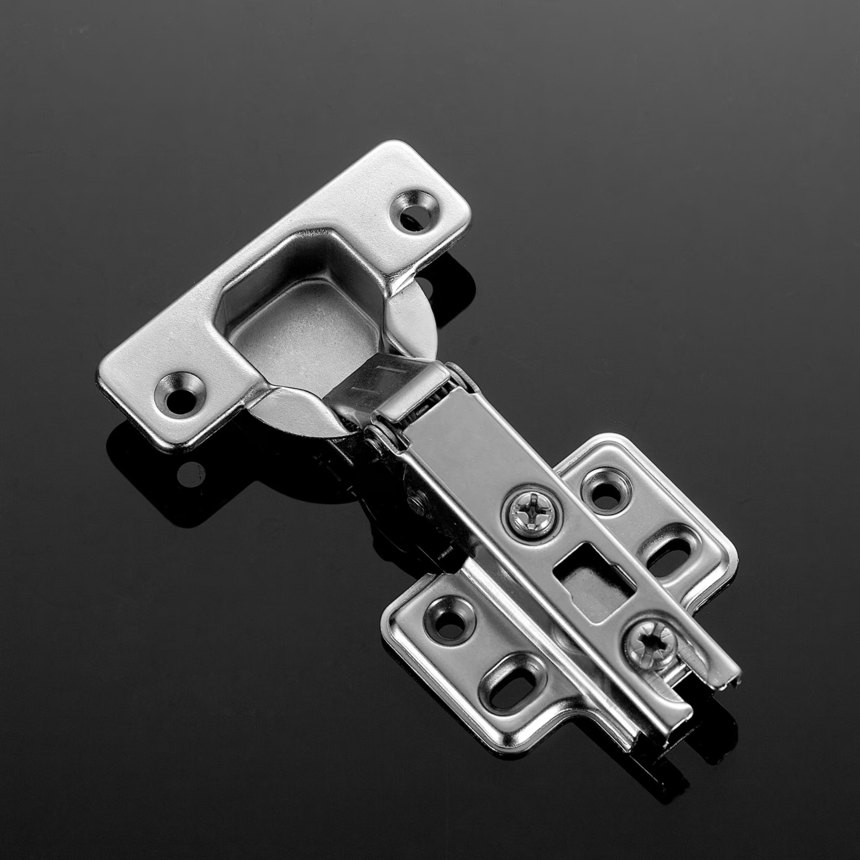

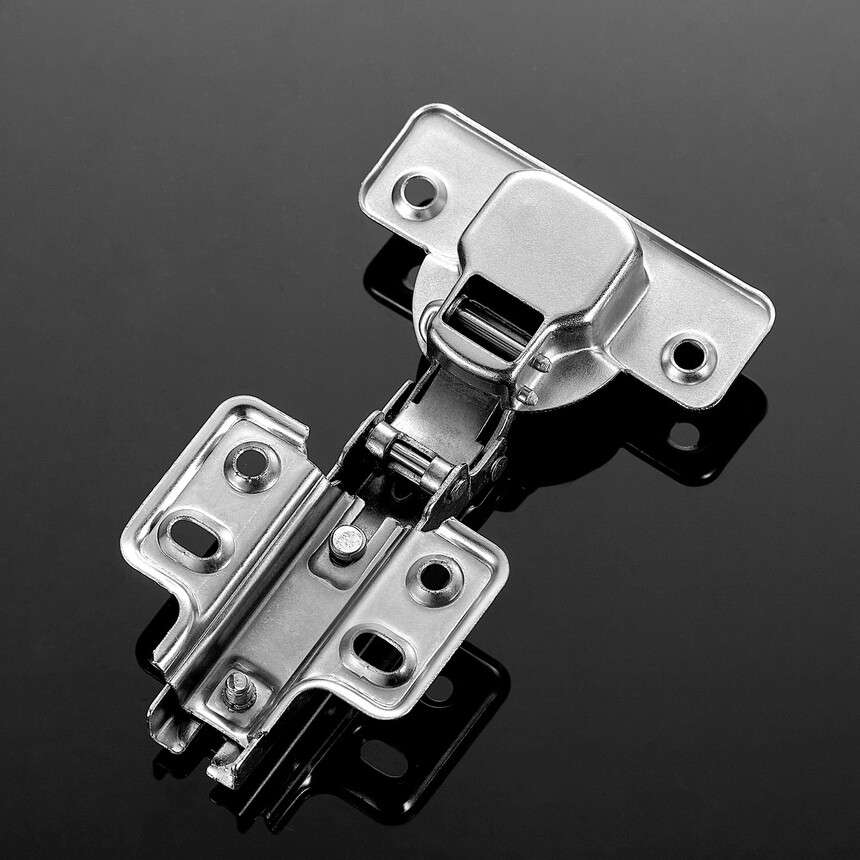

TH2068 Open and Slide Hinges for overlapping applications from 14 to 20mm. The mounting plate is supplied with pre-assembled euro screws that require a 5mm diameter hole, they can be removed if they are not needed.

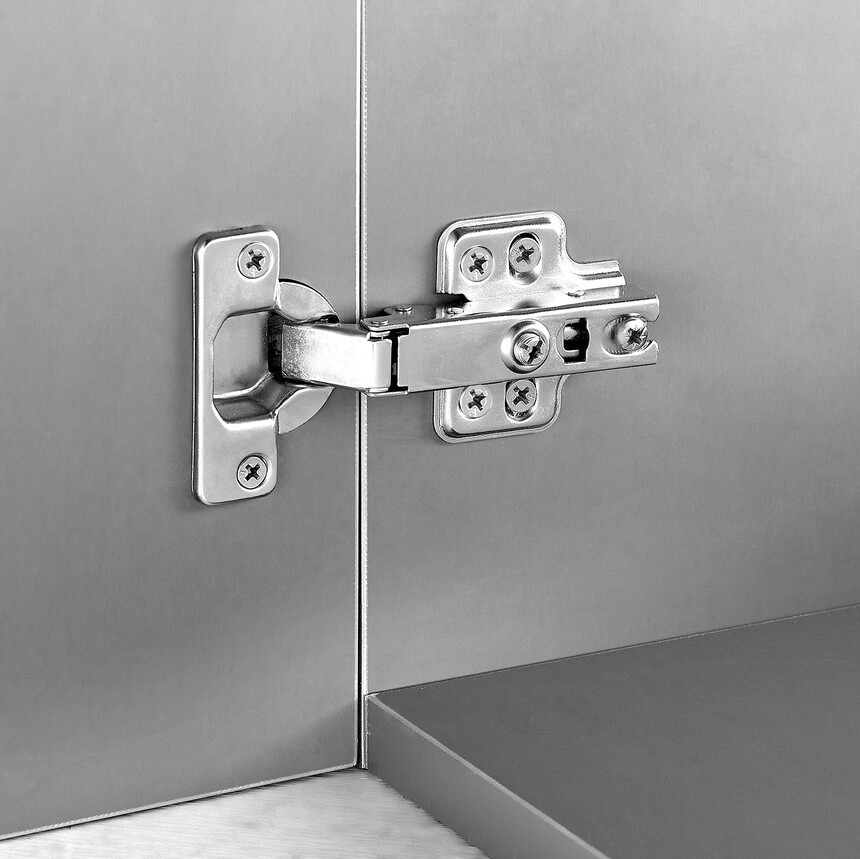

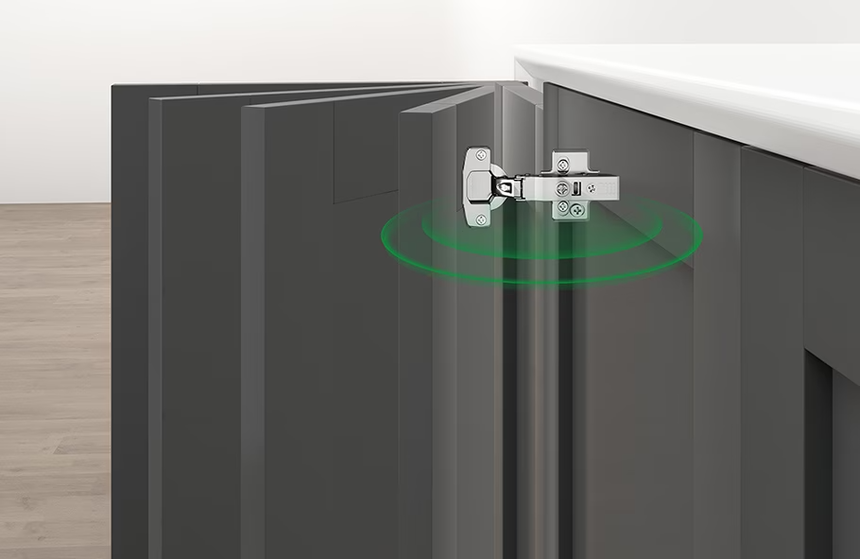

These hinges are ideal for doors up to 12 mm thick and are mainly used on furniture; perfect for built-in cabinet where the space are minimal.

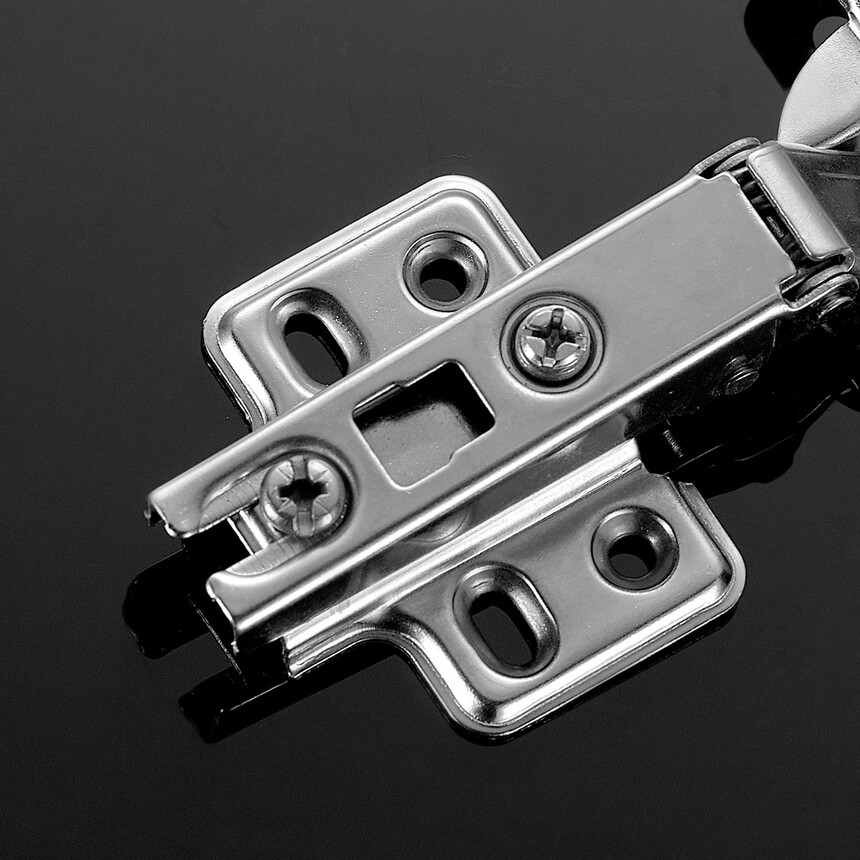

Two way adjustment on the base allow faster and more efficient installation to adjust the door height and coverage

Product Advantages

● Nickel-plated cold-rolled steel, strong rust resistance

● Slide-in design for easy installation

● Thick material, stable structure
