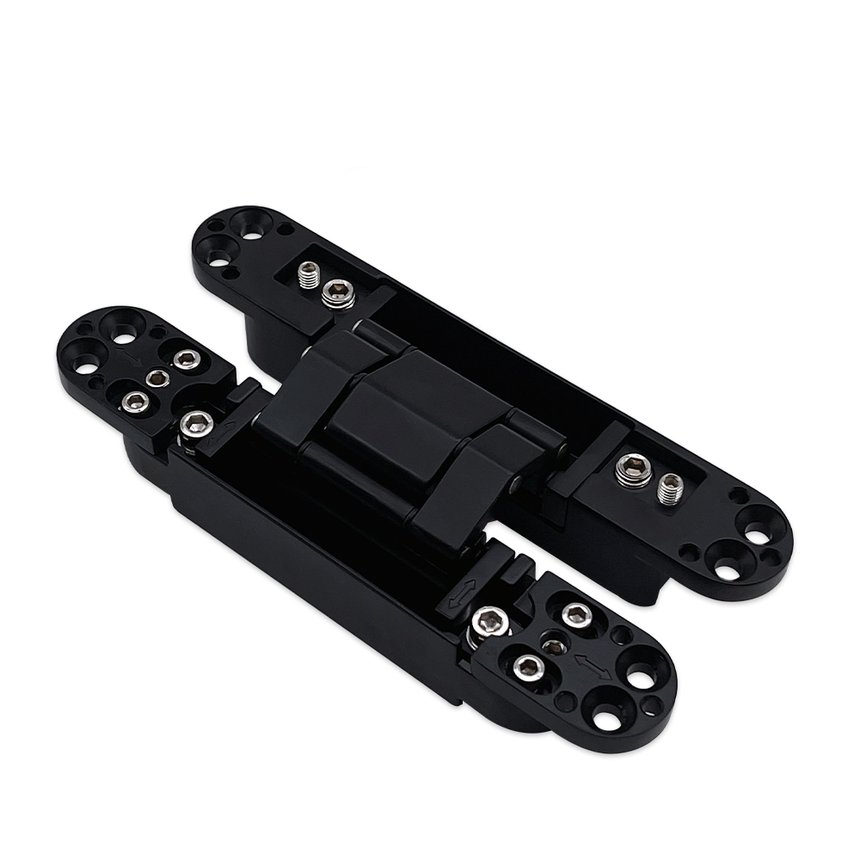

180 Degree Heavy Duty Inset Black Concealed Cabinet Hinges For Door

Model:sh3830
Opening angle:180 degree

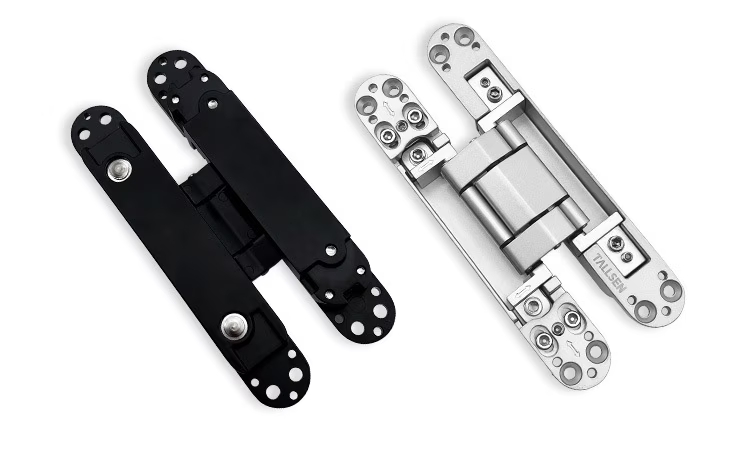

Color:Black/Silver

Collect
  • Description

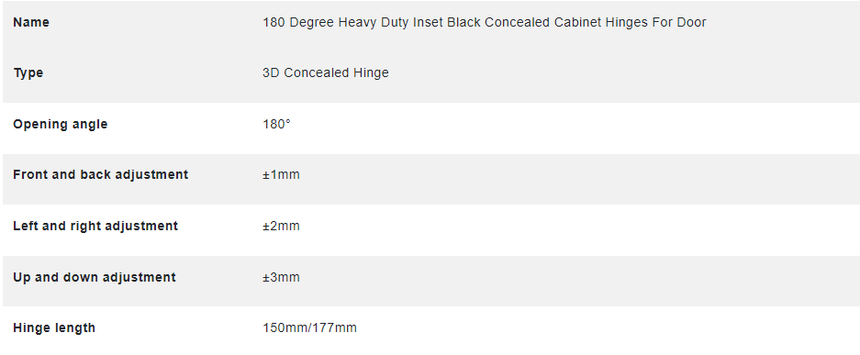

  • Parameters

Product Description



Introducing the 180 Degree Heavy Duty Inset Concealed Cabinet Hinges For Door, a revolutionary solution for seamless and efficient cabinet functionality. Engineered with precision and durability in mind, this hinge offers unparalleled convenience and longevity for your cabinet needs.

With its meticulously crafted nine-layer surface treatment, our hinges boast anti-corrosion and wear-resistant properties, ensuring an extended service life that exceeds industry standards. The built-in high-quality noise-absorbing nylon pad guarantees whisper-quiet opening and closing, adding a touch of sophistication to any space.

Enjoy effortless adjustments with our three-dimensional precise and convenient design, eliminating the need to dismantle the door panel. Achieve perfect alignment with ±1mm front and back, ±2mm left and right, and ±3mm up and down adjustments. The four-axis thickened support arm ensures uniform force distribution, enabling a maximum opening angle of 180 degrees.

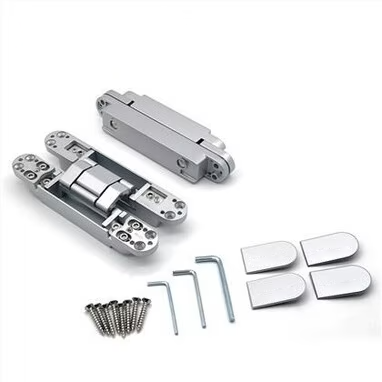

Additionally, our product comes equipped with screw hole covers, effectively concealing screw holes for a polished finish while safeguarding against dust and rust. Elevate your cabinet experience with our 180 Degree Heavy Duty Inset Concealed Cabinet Hinges For Door.



1.Surface treatmentNine-layer process,anti-corrosion and wear-resistant,longer service life


2.Built-in high-quality noise-absorbing nylon pad Soft and silent opening and closing




3.Three-dimensional adjustable  Precise and convenient, no need to dismantle    the door panel.Front and back ±1mm,left        and right ±2mm,up and down ±3mm

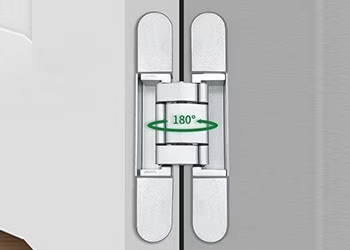

4.Four-axis thickened support arm The force is uniform,and the maximum opening angle can reach 180 degrees


5.With screw hole cover Hidden screw holes, dust-proof and rustproof


Product Description

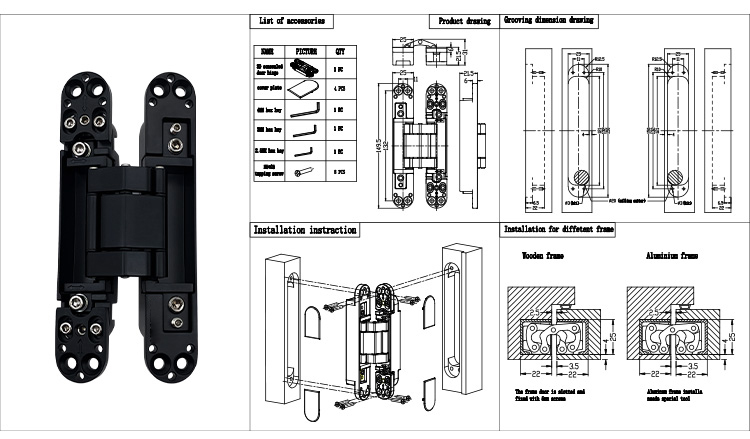

Installation Diagram
