Efficient Storage Solution with TALLSEN TH5090 the whole hinge Cabinet hingeDEQING LINNUO TH5090 HINGE carries designer's unique technology, creating a hinge that allows the cabinet door to open 90 degrees. The TH5090 hinge is equipped with a four-hole base, and the arm body adopts a semi-open classic tail buckle design, which is simple but stable; The 1.0mm thicker design of the base and arm body is enough to support cabinet doors weighing up to 10kgs without deformation, and the service life can reach 10 years; DEQING LINNUO adheres to international advanced production technology, authorized by ISO9001 quality management system, Swiss SGS quality testing and CE certification,ensure that all products comply with international standards.
Collect

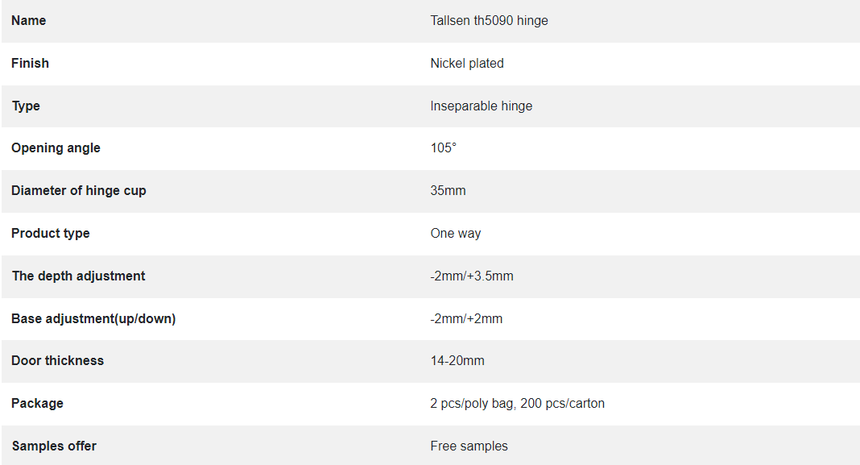

Product Description
DEQING LINNUOTH5090 the whole hinge is made of high-quality cold-rolled steel from Shanghai Baosteel, which is hard, durable and stable in performance; Double electroplating on the surface of the hinge, the thickness can reach 3mm, 1.5mm copper plating, 1.5mm nickel plating, which greatly improves the anti-corrosion and anti-rust performance of the hinge, and the service life can reach 10 years. It is suitable for furniture in different environments such as bathrooms, bedrooms, and kitchens; Each batch of cabinet hinges passed the 48-hour neutral salt spray test and level 8, anti-corrosion and anti-rust. And passed 50,000 opening and closing tests, with a service life of up to 20 years. Suitable for door panels with a thickness of 14-21mm, wider application scenarios ex. Wardrobe, Kitchen cabinet,Bathroom cabinet etc. Product Details

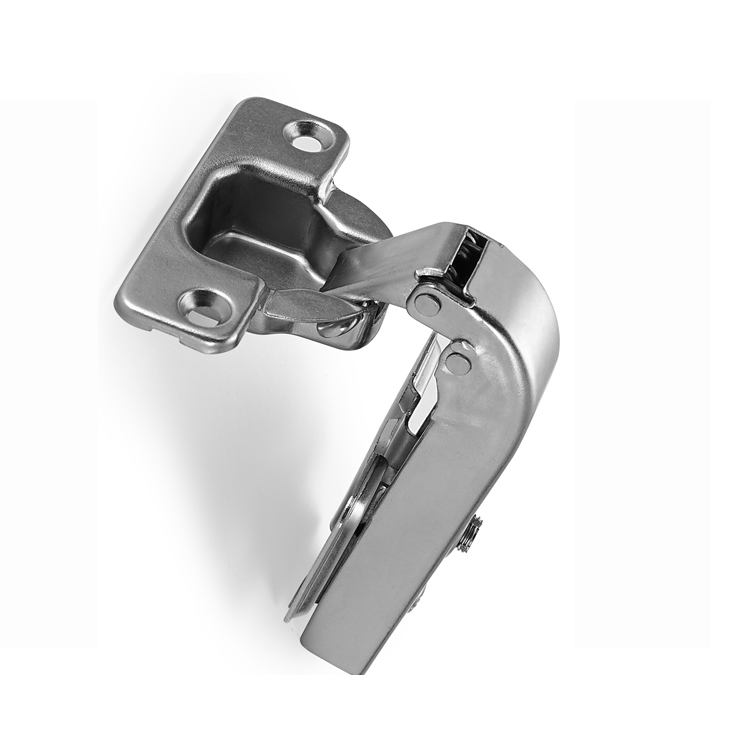

High-quality fixed one-strength ordinary hinges (without cushioning function) are made of cold-rolled steel.
The maximum opening angle of the hinge is 105 degrees, and the function is either fully open or fully closed
The surface is plated with 3 layers thick, it is not easy to rust, strong and durable, and load-bearing Strong. Product Advantages
● Superior raw material from Shanghai Baosteel ● 3MM double-layer electroplating ● Cabinet door to open 90 degrees ● 48 hours neutral salt spray test level 8 ● 50000 opening and closing tests ● 20 years service life Product Description

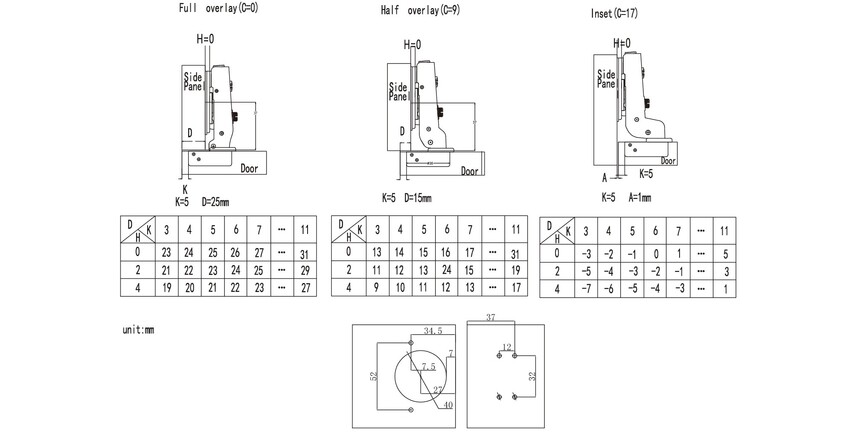

Installation Diagram
