165°damping 3d cabinet hinge TH1659DEQING LINNUO TH1659 clip-on 3D ADJUSTABLE HINGE combines the humanized design concept of the Tallsen brand. The designer has further upgraded the 165-degree hinge. The base adds a three-dimensional adjustable function to make the cabinet door seamlessly fit the cabinet. It is one of the most popular among the Tallsen large-angle hinges. The built-in buffer helps the cabinet door to close softly, and it is safe to prevent hands from being pinched; With a detachable base, it can be disassembled in one second, which greatly saves installation time; DEQING LINNUO adheres to international advanced production technology, authorized by ISO9001 quality management system, Swiss SGS quality testing and CE certification,ensure that all products comply with international standards.
Collect
Product Description

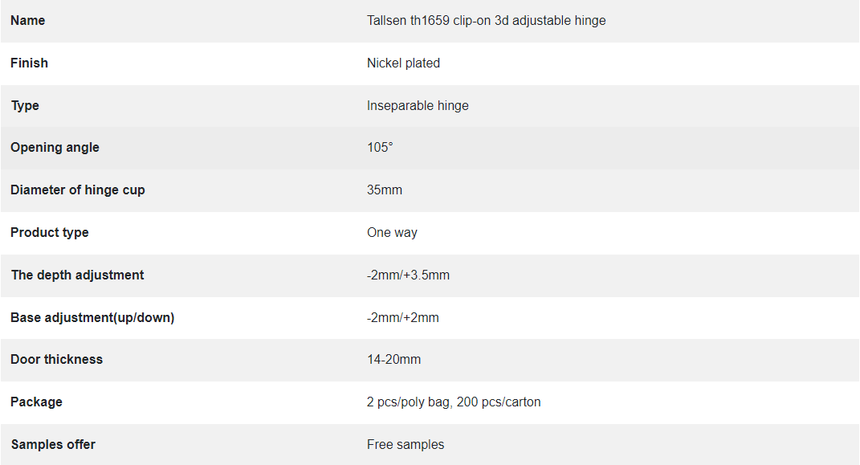

DEQING LINNUO 165 DEGREE HINGE TH1659 selects cold-rolled steel from Shanghai Baosteel as raw material, which has higher hardness, stable performance and durability; Double electroplating on the surface of the hinge, the thickness can reach 3mm, 1.5mm copper plating, 1.5mm nickel plating, which greatly improves the anti-corrosion and anti-rust performance of the hinge, and the service life can reach 10 years. It is suitable for furniture in different environments such as bathrooms, bedrooms, and kitchens; Each batch of cabinet hinges passed the 48-hour neutral salt spray test and level 8, anti-corrosion and anti-rust. And passed 50,000 opening and closing tests, with a service life of up to 20 years. Suitable for door panels with a thickness of 14-21mm, wider application scenarios ex. Wardrobe, Kitchen cabinet,Bathroom cabinet etc. Product Details
High-quality fixed one-strength ordinary hinges (without cushioning function) are made of cold-rolled steel.
The maximum opening angle of the hinge is 105 degrees, and the function is either fully open or fully closed
The surface is plated with 3 layers thick, it is not easy to rust, strong and durable, and load-bearing Strong. Product Advantages
● 3D adjustable clip-on wing base, efficient installation ● Built-in buffer, Soft closing cabinet door ● Cabinet door to open 135 degree ● Superior raw material from Shanghai Baosteel with 3MM double-layer electroplating ● 48 hours neutral salt spray test level 8 ● 50000 opening and closing tests ● 0 years service life Product Description

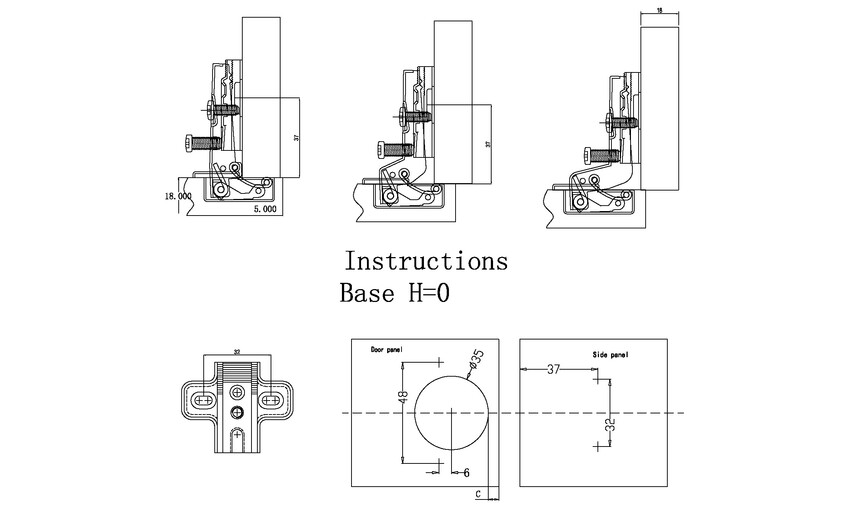

Installation Diagram
