Full Overlay Inseparable Cabinet Hinges

DEQING LINNUO CABINET DOOR HINGE TH5619 is another popular product series after the TH3319 hinge.

The design is simple and classic. The curved design of the arm body gives us a visual three-dimensional sense;

With a classic square base, it can bear 10kgs cabinet door;

The built-in self closing buffer can automatically close the cabinet door, which greatly facilitates our life.

DEQING LINNUO adheres to international advanced production technology, authorized by ISO9001 quality management system, Swiss SGS quality testing and CE certification,ensure that all products comply with international standards.

Model:

TH5619

MOQ:

10000pcs

Price Terms:

FOB Guangzhou

Payment Terms:

Full payment before shipment (30% in advance, and the rest payment before shipment.)

Warranty:

1 year warranty

Lead Time:

45 days after received deposit and can sample

After Sale Service:

Free training service

Collect

Description

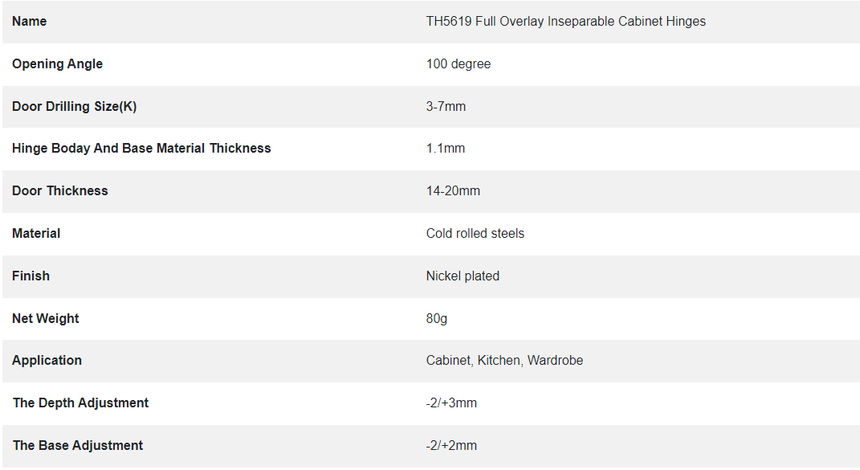

Parameters

Product Description

DEQING LINNUO TH5619 SELF CLOSE CABINET HINGE selects superior raw material: Shanghai Baosteel cold-rolled steel. The surface of the cabinet hinge is double-plated, 1.5mm copper-plated, 1.5mm nickel-plated, It has perfect moisture-proof and anti-rust properties. At the same time, the nickel color can match with furniture of different colors in 360 degrees;

Each batch of cabinet hinges passed the 48-hour neutral salt spray test and level 8, anti-corrosion and anti-rust.

And passed 50,000 opening and closing tests, with a service life of up to 20 years. Suitable for door panels with a thickness of 14-21mm, wider application scenarios ex. Wardrobe, Kitchen cabinet,Bathroom cabinet etc.

Product Details

TH5619 Full Overlay Inseparable Cabinet Hinges are suitable for home furniture cabinets.

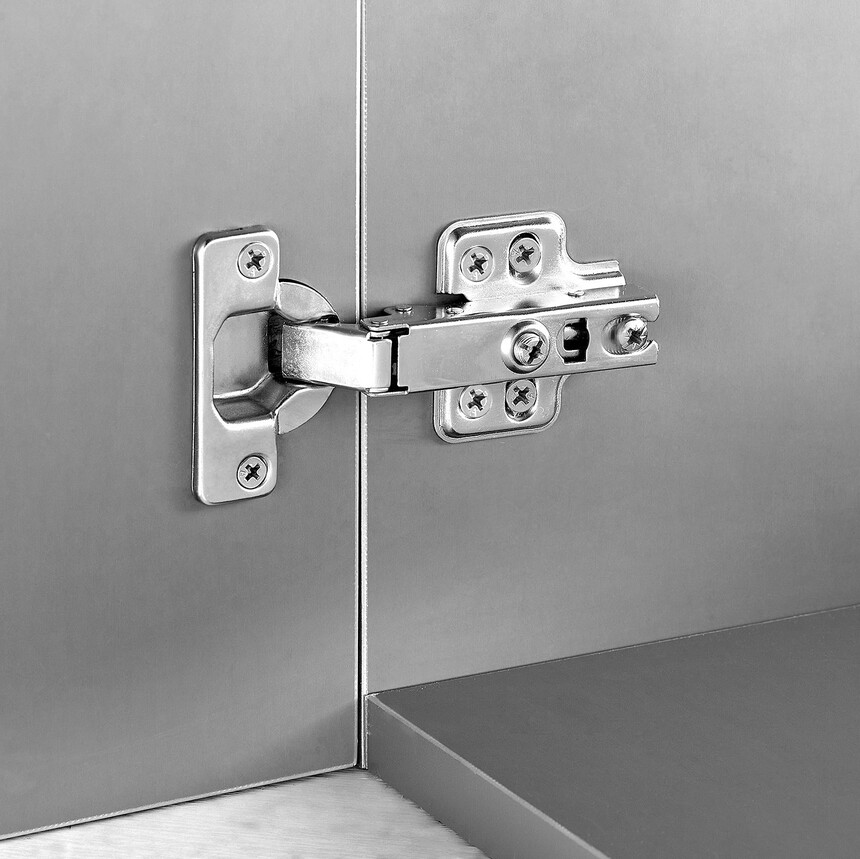

These hinges are totally hidden when installed. Originally designed in Europe for frameless cabinets you will now also find a full complement of face frame versions for almost any application.

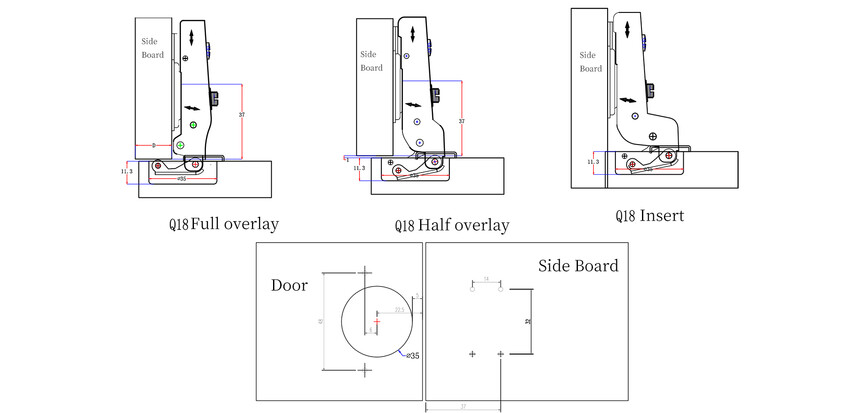

For overlay doors in face frame construction, you have two options for concealed hinges: a more economical choice, or European style hinges with face frame adapter plates.

Product Advantages
