Simultaneous Push Open Concealed Undermount Runner

DEQING LINNUOFULL EXTENSION SYNCHRONIZED PUSH-TO-OPEN UNDERMOUNT DRAWER SLIDES WITH 3D SWITHES is a silent rebound hidden rail, which can be opened at the touch of a button, freeing hands, easy and convenient, and a light luxury choice. It is an indispensable part of modern cabinets and can also be used for Shelves, cabinets, industrial drawers, RVs, vans, vending machines, etc.

Now the FULL EXTENSION SYNCHRONIZED PUSH-TO-OPEN UNDERMOUNT DRAWER SLIDES are popular in all major international home furnishing brands, which can ensure that the cabinet drawers are strong when they are popped up, and smooth and soft when they are pushed back, showing a sense of nobility.

The FULL EXTENSION SYNCHRONIZED PUSH-TO-OPEN UNDERMOUNT DRAWER SLIDES is a bottom-mounted slide rail, which is hidden and not exposed, simple and beautiful, and generates less noise when opening and closing. TALLSEN's three folds synchronous UNDERMOUNT DRAWER SLIDES are your wise choice.

Model:

SL4830

Price Terms:

FOB Guangzhou

Payment Terms:

Full payment before shipment (30% in advance, and the rest payment before shipment.)

Warranty:

1 year warranty

Lead Time:

48 days after received deposit and can sample

After Sale Service:

Free training service

Collect

Description
Parameters

Product Description

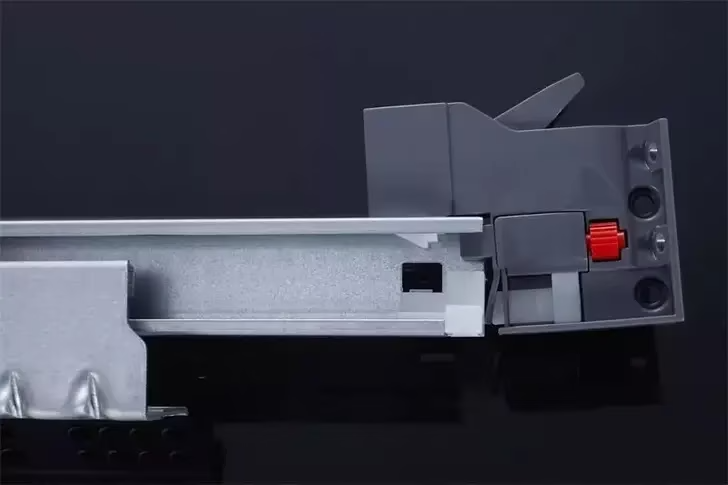

DEQING LINNUO FULL EXTENSION SYNCHRONIZED PUSH-TO-OPEN UNDERMOUNT DRAWER SLIDES WITH 3D SWITHES can change the opening and closing strength by adjusting the eccentric screw on the shock absorber. Users can quickly install and disassemble the bottom plate of the drawer and can use the 3D adjustment switches to control the 6-position gap between drawers.

DEQING LINNUOFULL EXTENSION SYNCHRONIZED PUSH-TO-OPEN UNDERMOUNT DRAWER SLIDES is made of high-quality environmentally friendly galvanized steel. Its hardness will increase the load-bearing capacity of the slide rail and it will not be easily broken. The fatigue test of continuous opening and closing with a load of 35kg can reach 80,000 times

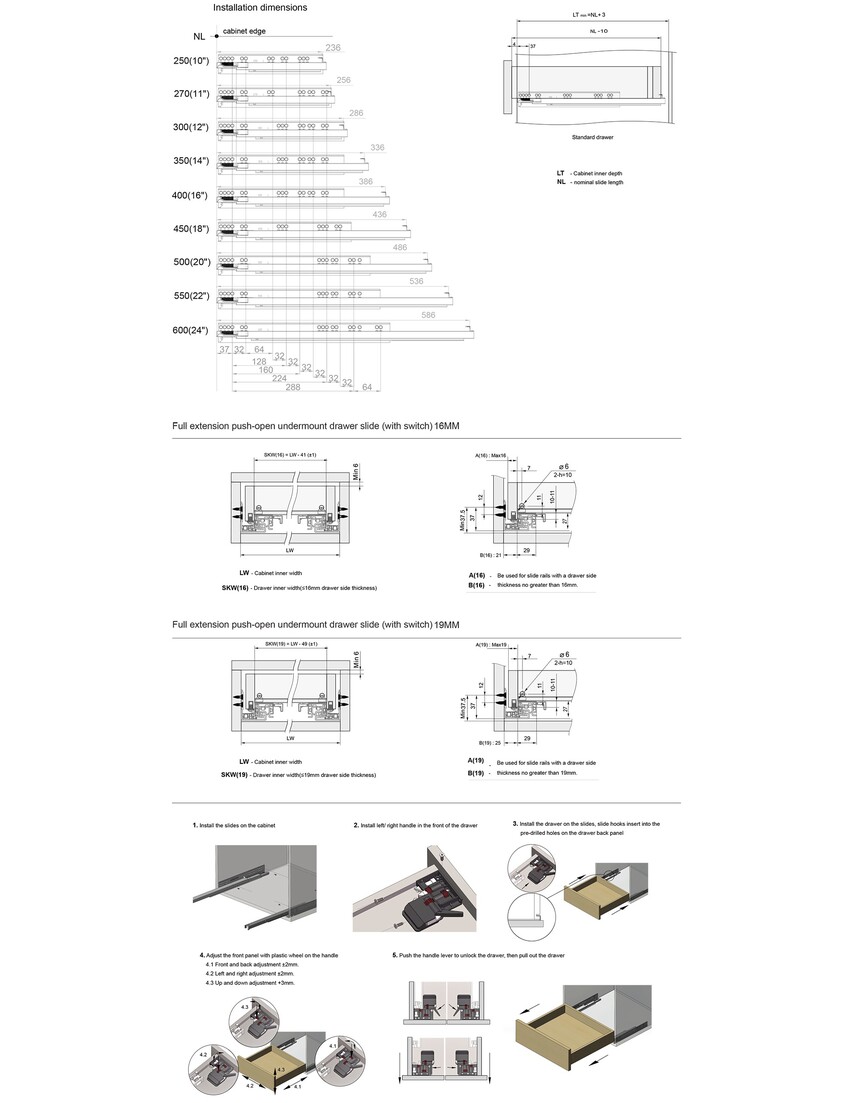

Optionally suitable for sixteen(mm) or eighteen(mm) thick boards. The thickness of the slide rail is 1.8*1.5*1.0mm, and its regular length is optional: 250mm ( 10''), 270mm, 300mm ( 12'' ), 350mm ( 14'' ), 400mm ( 16'' ), 450mm ( 18'' '' ), 500mm ( 20'' ), 550mm ( 22'' ), 600mm ( 24'' ).

DEQING LINNUO SLIDES passed the 24-hour salt spray test in the laboratory test without rust, and the rust resistance was grade 8, in line with the European EN1935 test standard and obtained an SGS certificate. Tallsen's PUSH-TO-OPEN UNDERMOUNT DRAWER SLIDES have an excellent performance in terms of the ejection force of the slide rail, the smoothness of the slide rail, and the degree of silence. It is a high-quality UNDERMOUNT DRAWER SLIDES manufacturer.

Product Details

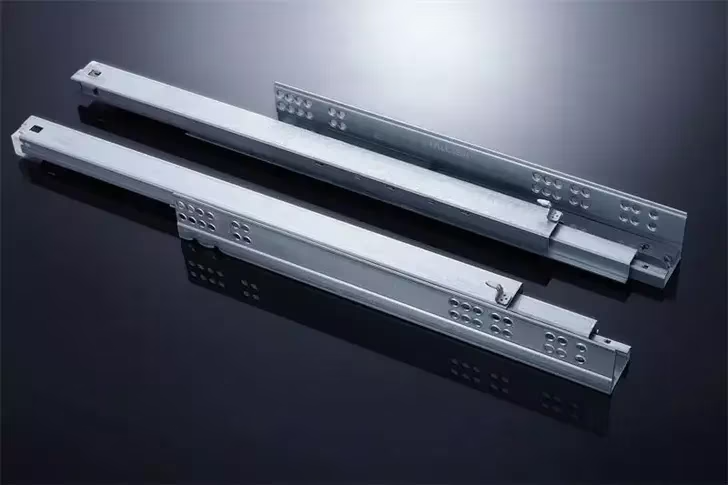

SL4830 Simultaneous Push Open Concealed Undermount Runner

fficient, Effective, Concealed, Dynamic, the new generation of undermount slides for wood drawers, combines intelligent features plus superb gliding action for today' s tradition and contemporary cabinetry.
