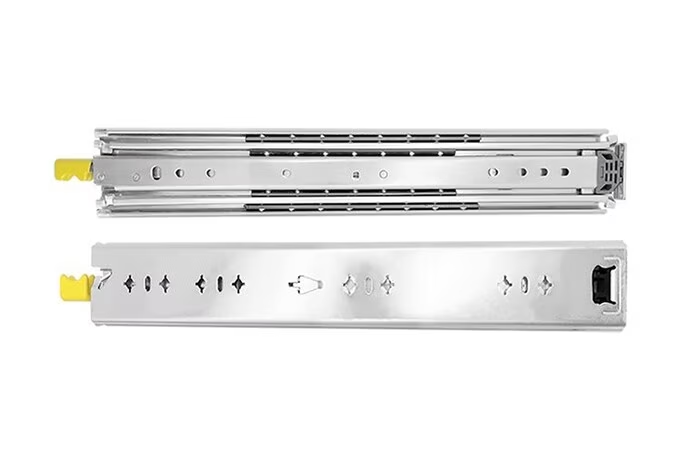

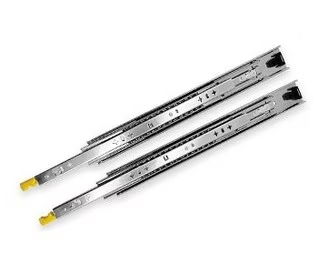

76mm Heavy Duty Drawer Slides Bottom Mount

LHEAVY DUTY BALL BALL BEARING DRAWER SLIDES

PRODUCT DETAILS

1.Reinforced thickened galvanized steel sheet 220KG loding capacity,firm and not easy to deform;suitable for containers,cabinets,industrial drwaers,financial equipment,special vehicles,etc.

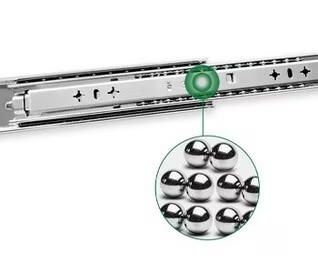

2.Double rows of solid steel balls Ensure smoother and less labor-saving push-pull experience

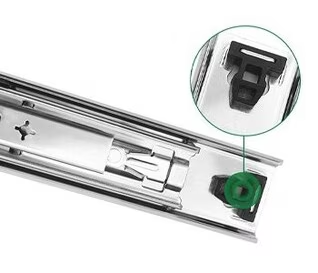

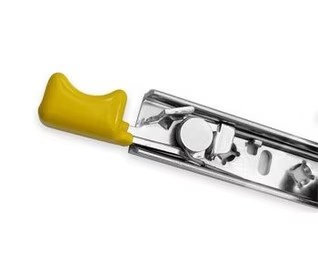

3.Non-separable locking device Prevent the drawer from sliding out at will

4.Thickened anti-collision rubber Play a friction role to prevent automatic opening after closing

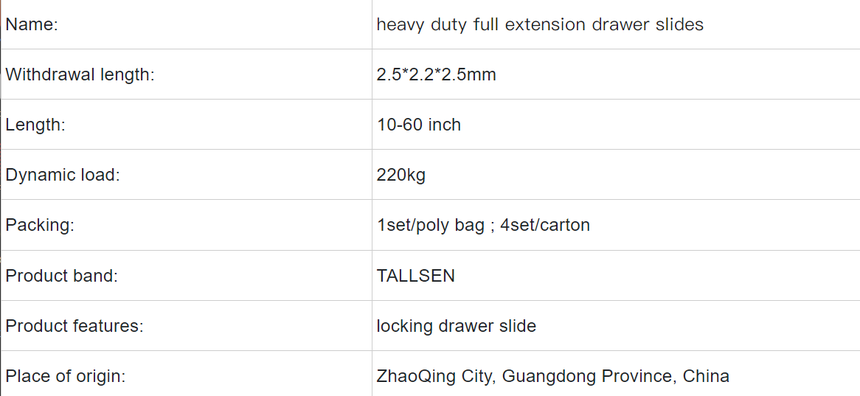

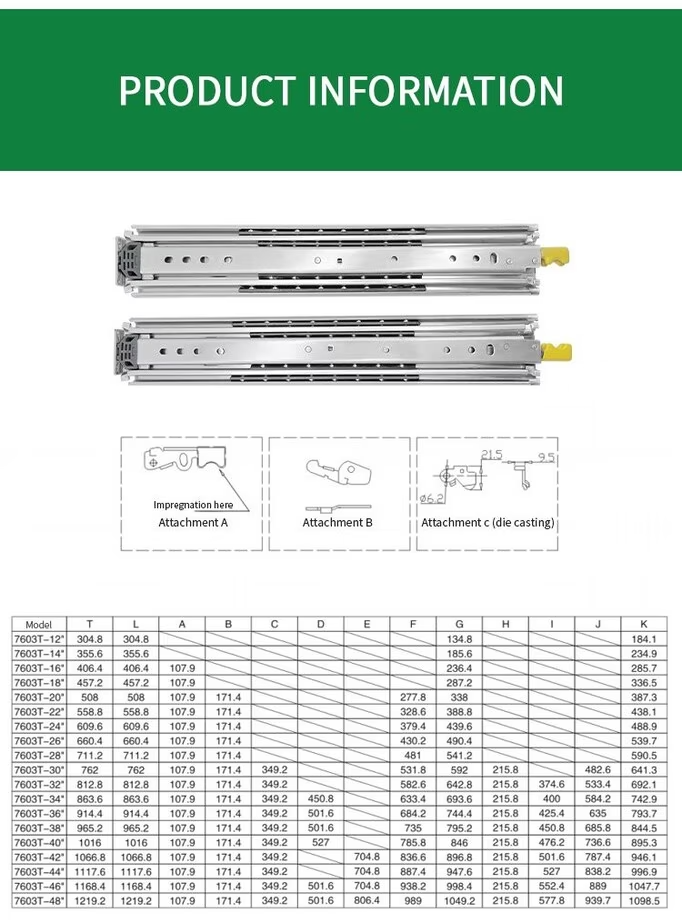

PRODUCT INFORMATION

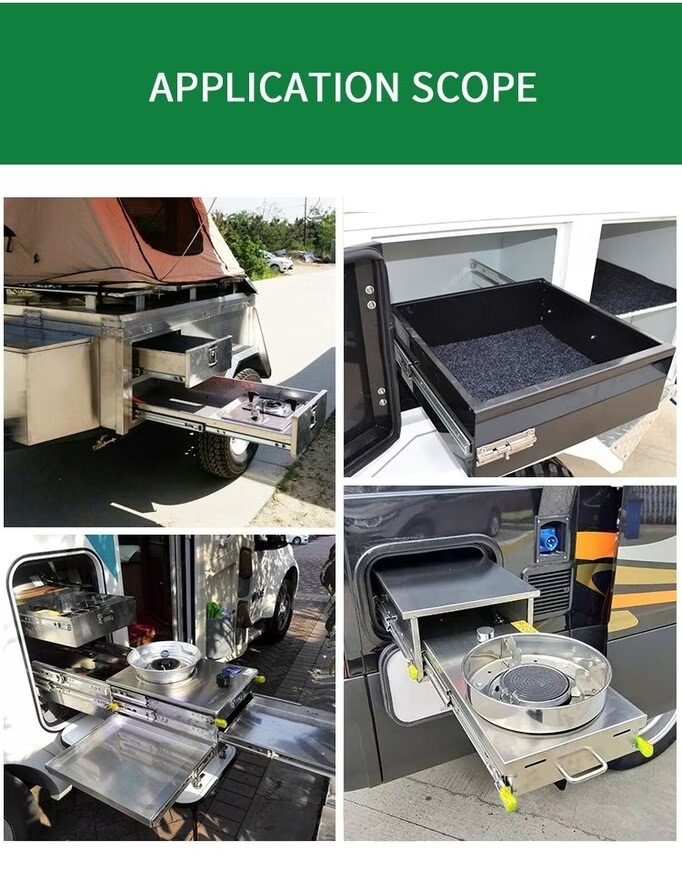

APPLICATION SCOPE

Question And Answer:

The width of the drawer will depend on slide chosen and the side-to-side clearance needed for that slide. Side-to-side allowances range from 3/8" overall to 1/2" overall, depending on series chosen.

Depth of the drawer should match the slide chosen. (I.e., If you choose an 18” drawer slide, the drawer box will have to 18” deep also, and so on.)

This type of slide also has specific height allowances.
