Full Extension Push to Open Ball Bearing Drawer SlidesDEQING LINNUOTHREE FOLDS PUSH-TO-OPEN BALL BEARING SLIDES is a drawer bounce system realized by the spring damping in the track based on the principle of automatic rebound guide rail. The gentle movement of the new spring system of the guide rails provides a high level of comfort when pulling the drawers without handles, and without drawer handles so as not to disrupt the modern vision of the straight lines of the furniture. Furniture doors and drawers pop open with a flick of their own. No matter where you flick the front, the drawer pops out softly and smoothly. When closed, the drawer is completely and securely locked again, reducing wear and tear, allowing the drawer to close silently and protecting the furniture. DEQING LINNUOTHREE FOLDS PUSH-TO-OPEN BALL BEARING SLIDES can be used in various scenarios such as civil furniture cabinets, office furniture cabinets, cabinets, cabinet drawers, office drawer cabinets, wardrobes, bathroom cabinets, etc. It is the best choice for high-end cabinets. Using the German standard production process and incorporating the ingenious design of DEQING LINNUO, the THREE FOLDS PUSH-TO-OPEN BALL BEARING SLIDES will definitely be more and more popular.
Collect
Product Description

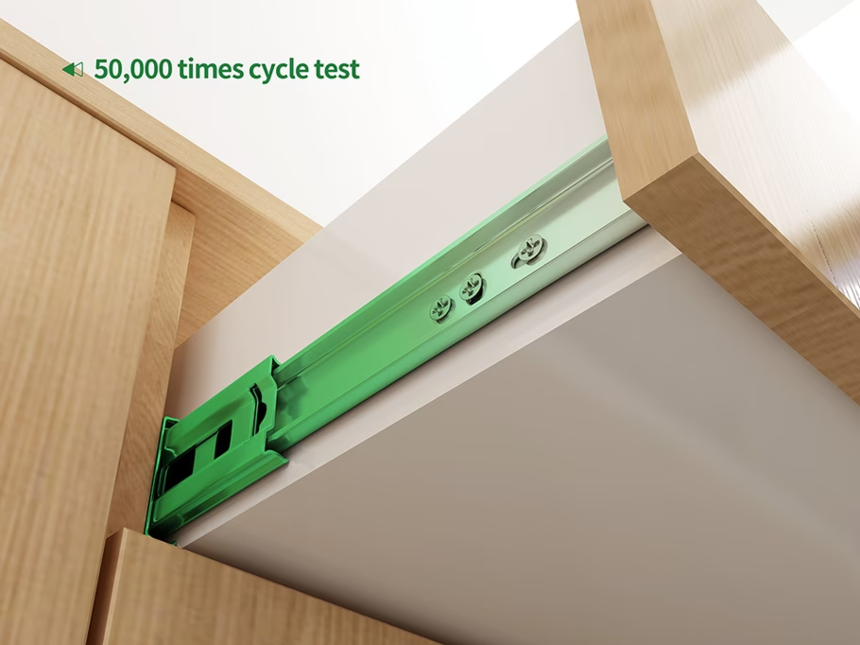

DEQING LINNUOTHREE FOLDS PUSH-TO-OPEN BALL BEARING SLIDES is made of cold-rolled steel raw material coated with high-density zinc on the surface, high strength, strong willfulness, and thickness can be selected 1.0*1.0*1.2mm/1.2*1.2*1.5mm, its hardness will make the load-bearing capacity of the slide rail is enhanced and it is not easy to break. The fatigue test can reach 50,000 times under a load of 35kg. Easy to open the drawer; the humanized design of the U-shaped hole can fine-tune the gap when the slide rail is installed. The standard length of PUSH-TO-OPEN BALL BEARING SLIDES is optional: 250mm ( 10''), 270mm, 300mm ( 12'' ), 350mm ( 14'' ), 400mm ( 16'' ), 450mm ( 18'' ), 500mm ( 20'' ), 550mm ( 22'' ), 600mm ( 24''), the colour can be white and electrophoretic black. Use DEQING LINNUOTHREE FOLDS PUSH-TO-OPEN BALL BALL BEARING SLIDES to open and close drawers without bending over and freeing your hands, which is an ideal way to realize multi-functional furniture. Product Details

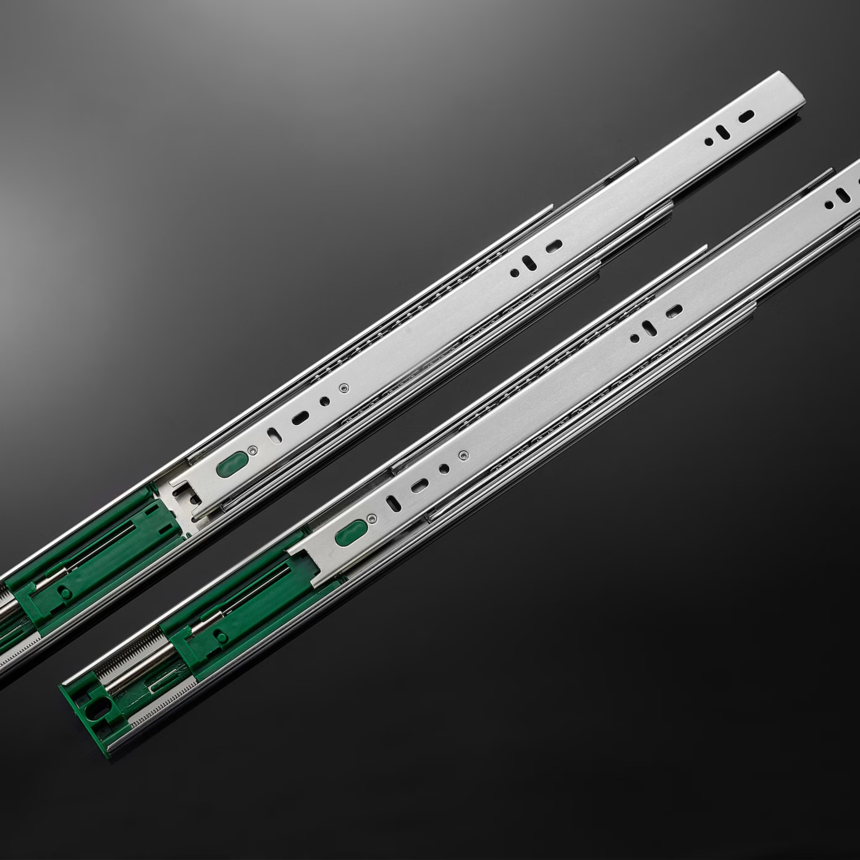

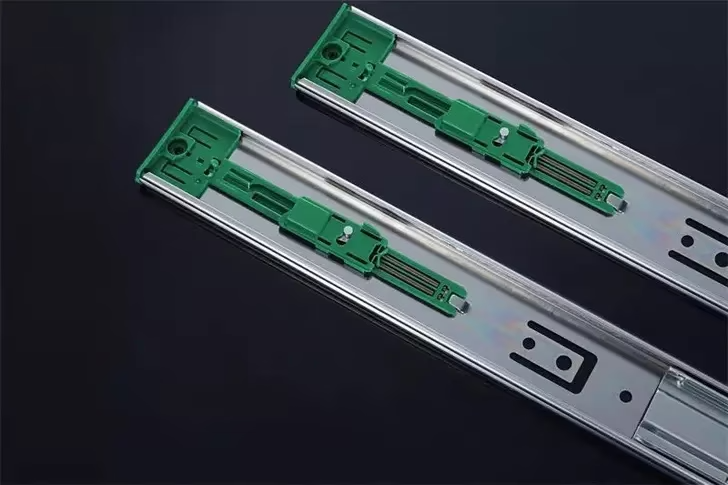

Full extension push to open ball bearing drawer channel Capacity uses double spring and pure copper core damper and ball bearing design.
The surface is through electrophoresis treatment. The electrophoretic layer prevents air from directly contacting the rail steel plate.
It is made of 1.2mm high-density thickened steel.The bearing capacity can be as high as 35kg/80Pound.
The design of double rows of solid steel balls can ensure smooth, balanced and silent operation of the guide rail. Product Advantages
● High-quality double springs, strong force, quiet rebound, quiet and comfortable. ● Durable wear resistance and anti-rust. ● Humanized U-shaped screw holes, adjustable installation. Product Description

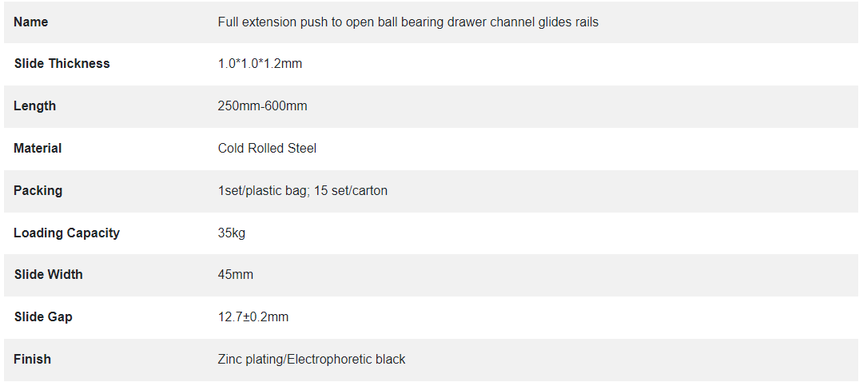

Specifications
