Tallsen three folds normal ball bearing slides SL3453DEQING LINNUOTHREE FOLDS NORMAL BALL BEARING SLIDES is a piece of hardware used to support the smooth operation of drawers in furniture, cabinets, and other storage units. They are designed to provide a solid and reliable platform for drawers to slide in and out effortlessly, making them an essential part of any modern cabinet or furniture design. The use of DEQING LINNUOTHREE FOLDS NORMAL BALL BEARING SLIDES also provides higher load capacity, allowing heavier items to be stored in the drawer without worrying about the slides breaking or getting stuck. Ball-bearing drawer slides offer several design advantages in addition to their functional advantages. They are available in a variety of sizes and finishes to match any decor and can be installed in different orientations to suit specific drawer layouts. When selecting ball-bearing drawer slides, it is important to consider the product's load capacity, extension length, and overall durability. Look for models with high weight ratings, full extension capabilities, and corrosion-resistant finishes to ensure long-lasting performance. Overall, DEQING LINNUO as a telescopic drawer slides manufacturer is made in Germany, its reliable performance, smooth operation and stylish design make it an excellent choice for any application that uses drawers.
Collect
Product Description

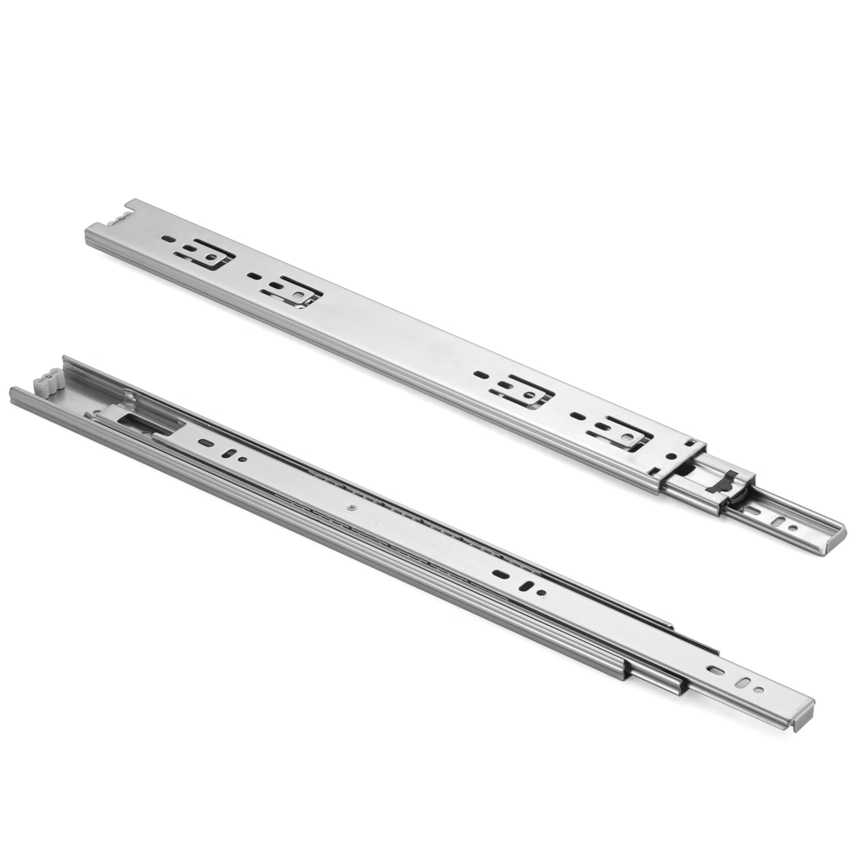

DEQING LINNUOTHREE FOLDS NORMAL BALL BEARING SLIDES is a structure installed on the side of the drawer cabinet, which is relatively simple to install and greatly saves space. Good quality steel ball slide rails can ensure smooth push and have a large load-bearing capacity. In modern furniture, steel ball slides have become the main force of modern furniture slides. DEQING LINNUOTHREE FOLDS NORMAL BALL BEARING SLIDES is made of high-quality cold-rolled steel, the thickness can be selected as 1.0*1.0*1.2mm/1.2*1.2*1.5mm, and its corresponding load-bearing capacity reaches 35kg~45kg, and the conventional length is optional: 250mm ( 10''), 270mm, 300mm ( 12'' ), 350mm ( 14'' ), 400mm ( 16'' ), 450mm ( 18'' ), 500mm ( 20'' ), 550mm ( 22'' ), 600mm ( 24''), the colour can be white or electrophoretic black, passed the 24-hour salt spray test in the laboratory without rust, and the anti-rust level was 8, in line with the European EN1935 test standard and obtained the SGS quality certificate. The smoothness of the THREE FOLDS BALL BEARING SLIDES produced by DEQING LINNUO has excellent performance, and it is a high-quality drawer slide manufacturer Product Details

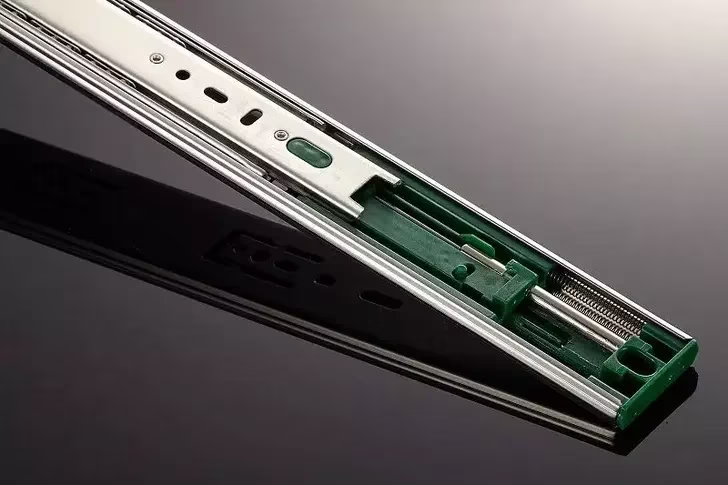

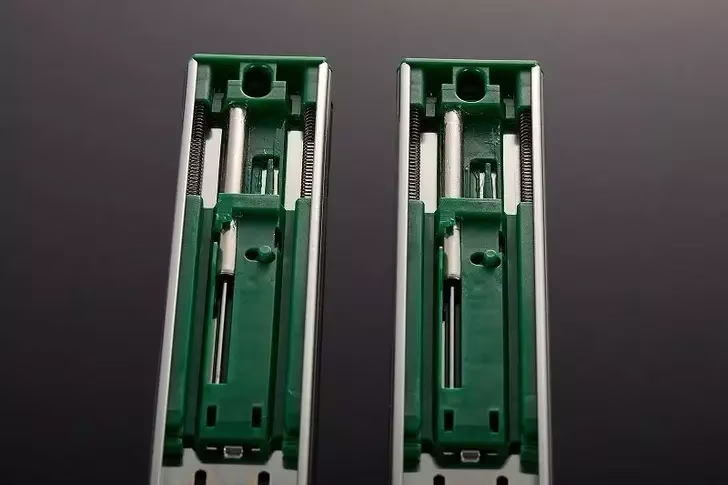

Three fold double spring soft close ball bearing slides. Comprised of a stainless-steel ball retainer, ball bearings, and rivets.
It also includes silenced operation as well as a hold-in detent to prevent drawer roll-out or bounce-back.
Perfect for fixtures and hardware that receive exposure to the elements--such as greenhouses, locker rooms, garages, grill stations, and more!
Designed to withstand moderate weather conditions. With a special, weather-resistant coating that provides eight times more protection than a standard zinc finish. Product Advantages
● Solid steel balls: Double rows of solid steel balls are smooth and quiet. ● Steel ball stabilization groove: the sliding direction of the stable steel ball is not easy to fall off. ● Wear-resistant bumper: protect the plate, durable. Product Description

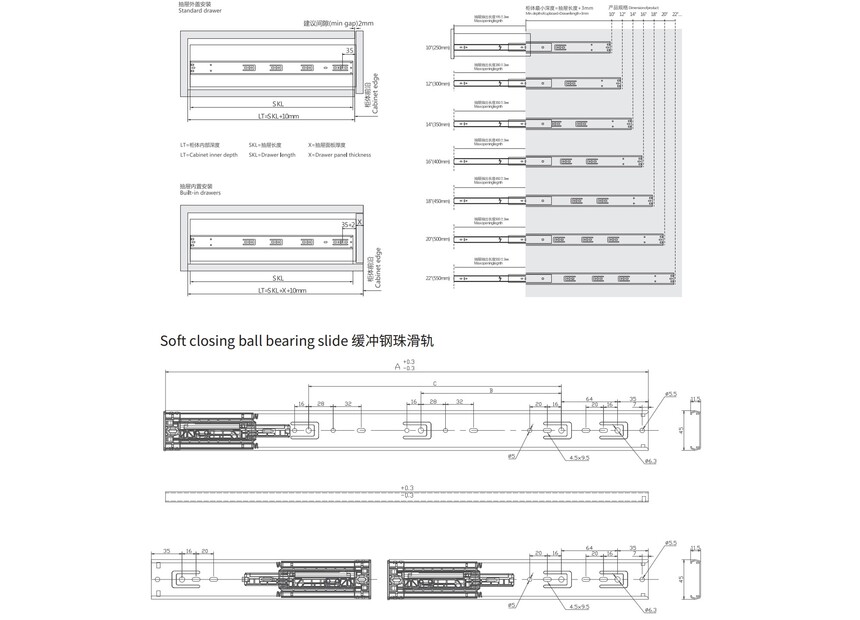

Specifications
